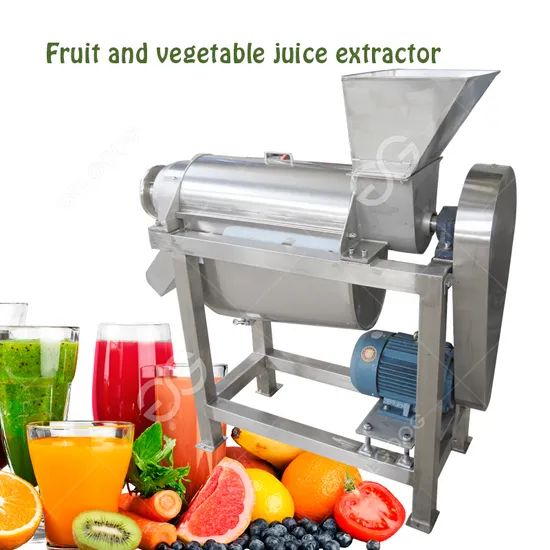

Stainless Steel Orange Vegetable Lemon Press Fruit Pomegranate Juicer

Basic Info

Model NO.	LZ-0.5
Processing Material	Fruit
Process	Cold
Name	Juicer Machine
Power	1.5 Kw
Screw Diameter	87.5mm
Hole Diameter of Filter Net	0.6mm
Rotation Speed of Main Shaft	400 Rpm
Function	Press Orange Pomegranate
Shipment	by Fast Ship
Model	Lz-0.5
Dimension	L1100*W480*H900mm
Weight	100kg
Transport Package	Wooden Case
Specification	ISO9001, CE, SGS, BV
Trademark	sunshine
Origin	Henan, China
HS Code	85094010
Production Capacity	1000 Sets Per Month

Product Description

Stainless Steel Orange Vegetable Lemon Press Fruit Pomegranate JuicerI. Introduction Spiral juicer, is to absorb the international advanced technology developed from. This machine widely be squeezed watermelon, grapes, strawberries, pears, apples, lemons, oranges, oranges, tomatoes, papaya, carrots, ginger juice and other liquid. II. Performance characteristics 1, advanced design, compact structure, elegant appearance. 2, the aircraft combination crusher and spiral juicer is made of two parts, automatic completion of crushing, juice, slagging processes. 3, using conical screw, large capacity, high rate of juice. 4, high efficiency, low noise, no pollution. 5, with material contact parts made of stainless steel;III. Device structure and principle1,Structure: From the front seat, into the hopper, screw, filter, Sheng juice, a rear seat, slag tank and other parts, screw spindle bearing in the rolling bearing, supported on the right hand wheel bearings, motor through a pair of triangular pulley driven coil work. 2, Working principle: The main components of this device is a spiral along the direction of the bottom outlet bagasse and pitch diameter gradually increased gradually reduced, when the material is the propeller, because the spiral cavity volume reduction, the formation of the material of the press. Screw spindle rotation direction as viewed from the hopper to the slag tap direction is clockwise. Feedstock into hopper, under pressure screw propulsion, the juice squeezed through the filter into the bottom of the juice is filled, and the waste is formed by an annular gap between the screw and the tapered portion of the discharge regulator, surge move axially adjustable head size voids. Size for clockwise (from the slag troughs device into the hopper end to see when to turn the hand wheel bearing, pressure head to the left, that is narrowing the gap, the gap becomes larger and vice versa.) Change the gap, that row adjustment slag resistance. It can change the slag rate, but if the gap is too small, under strong squeeze, some slag particles together and juice is squeezed out through the filter, although the juice increased, but the quality of the juice of the relative decline in the size of the gap should be considered user specific process requirements. IV. Technical parameters:

Technical parameters Model	LZ-0.5	LZ-1.5
Capacity	500Kg/h	1500Kg/h
Screw diameter	Φ87.5mm	Φ175mm
Hole diameter of filter net	0.6mm	0.6mm
Power	1.5Kw	4Kw
Rotation speed of Main shaft	400rpm
Weight	100Kg	240Kg
Size	1100*265*920mm	1560*450*1340mm
Inlet size	0.24m*0.25m	0.39m*0.4m
